1953 Transistor Radio Restoration

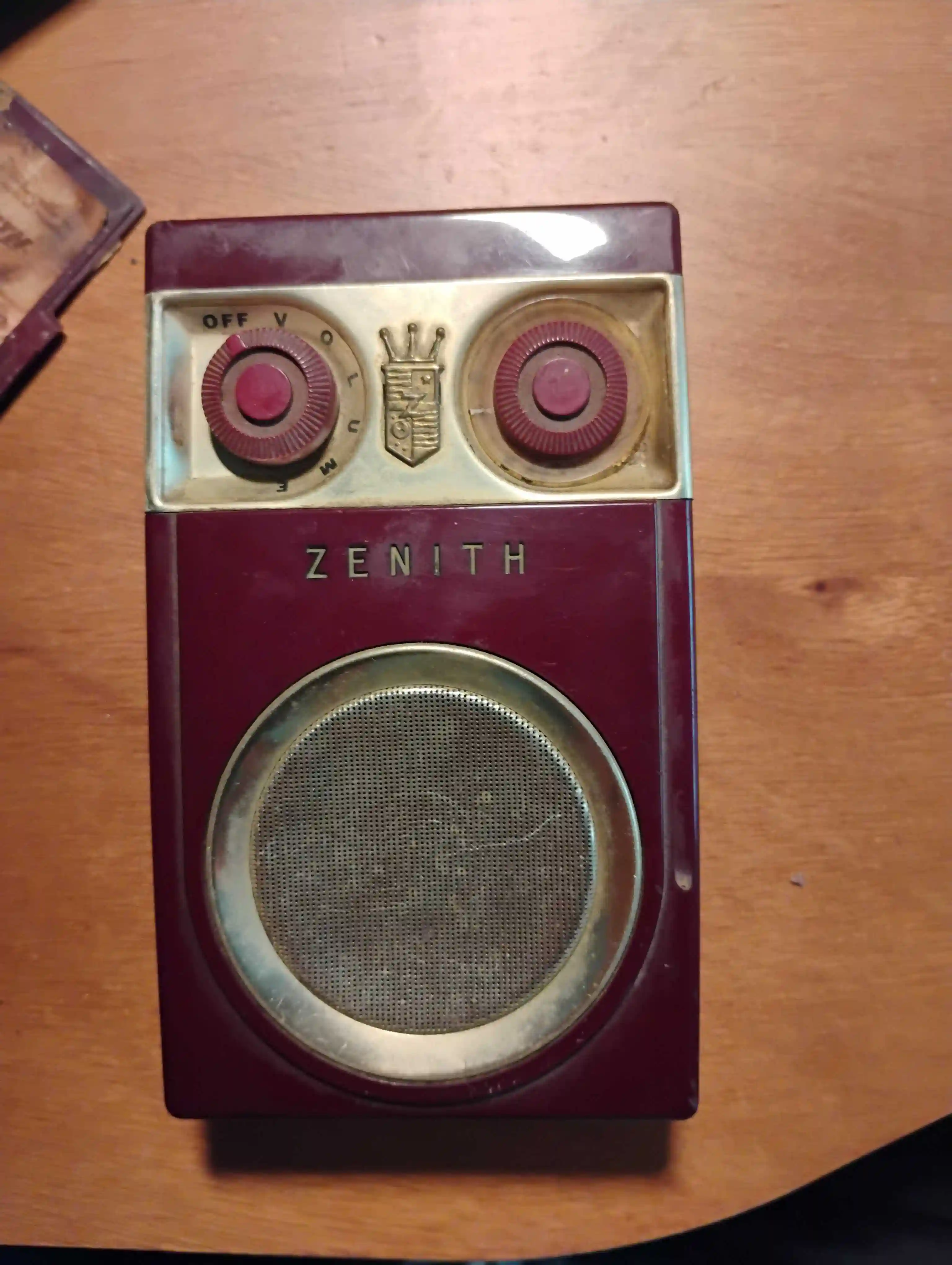

1953 Vintage transistor radio of unknown model

Restoring a 1953 transistor radio of unknown model: mapping the board layout and sourcing the antenna.

How NU Wireless helped
  • Access to soldering equipment and the circuit design skills taught in Wireless Club workshops.

Keyboard Reverse-Engineering

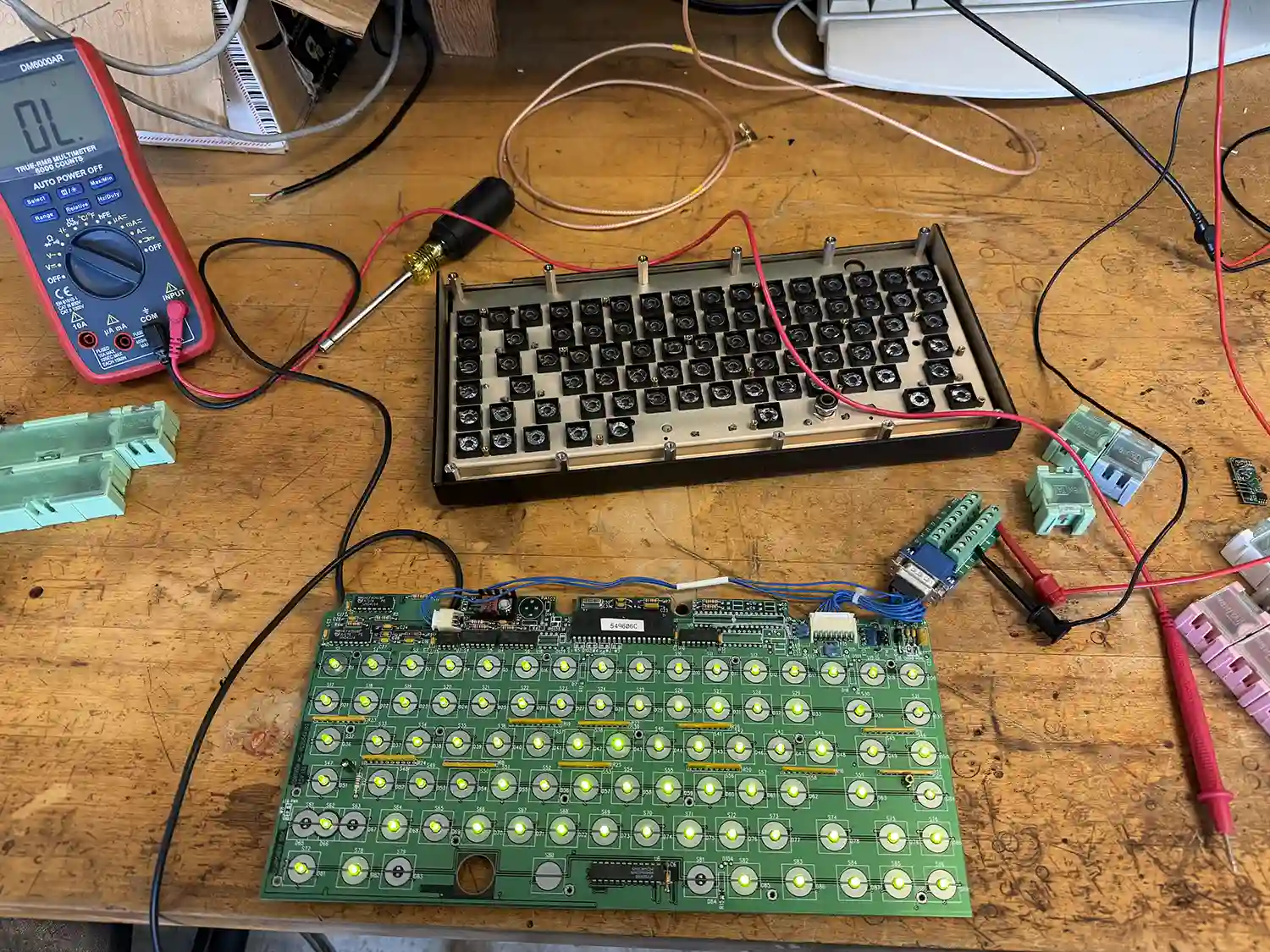

Air-traffic control keyboard and trackball

Reverse engineering a RADAR air-traffic control keyboard and trackball combo by analyzing its custom protocol, with the goal of building a working adapter.

How NU Wireless helped
  • Saleae logic analyzer
  • Bench power supplies

QRP Labs QMX+ Kit Build

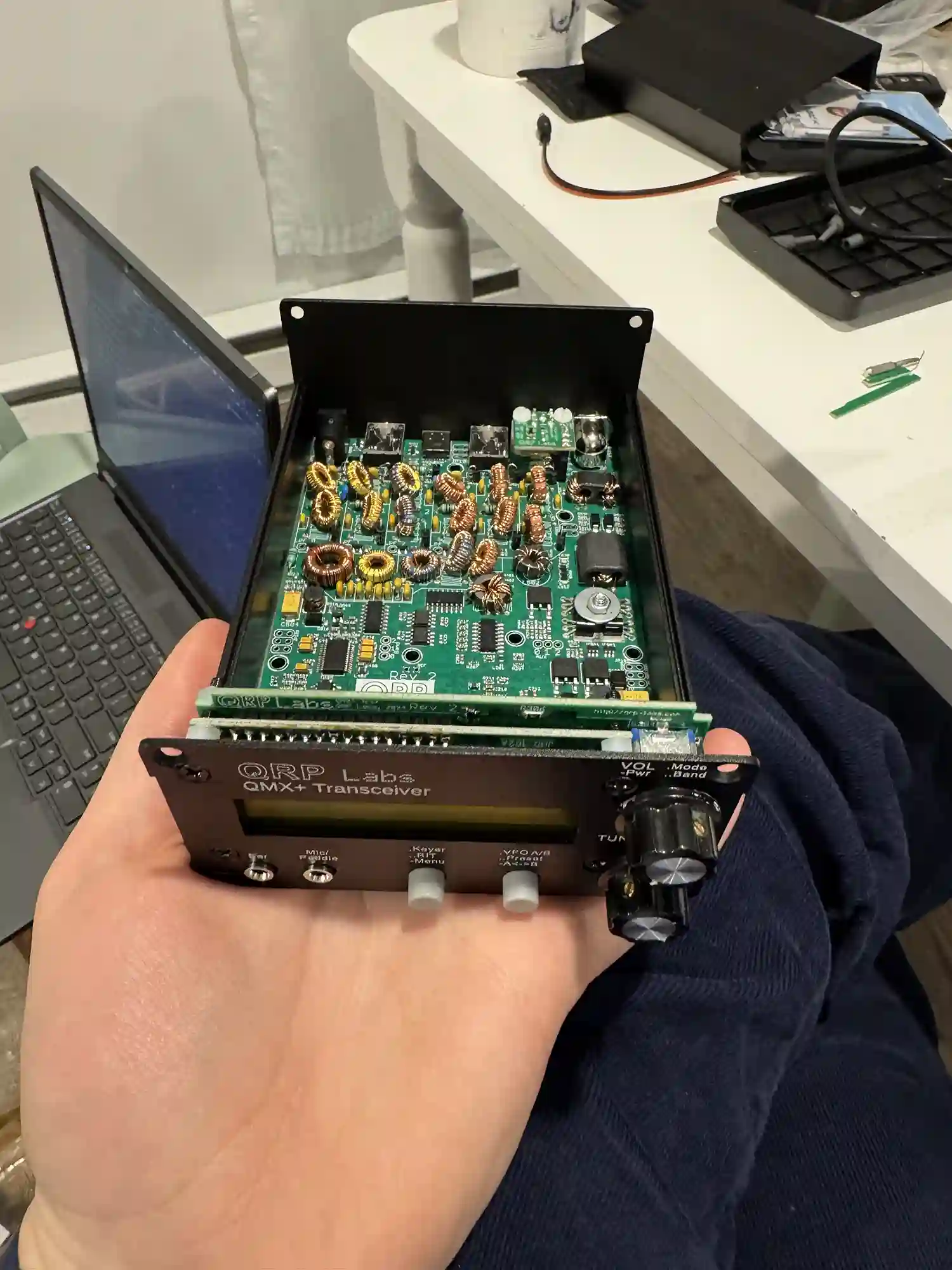

QMX+ transceiver with toroids

Built the QMX+ multiband QRP transceiver kit from QRP Labs, hand-winding 19 toroids to make a multi-band QRP rig. It has been used extensively as an FT8 and WSPR transceiver, with upcoming support for SSB via new firmware to be tested soon.

How NU Wireless helped
  • Access to lab

DIY Curve Tracer

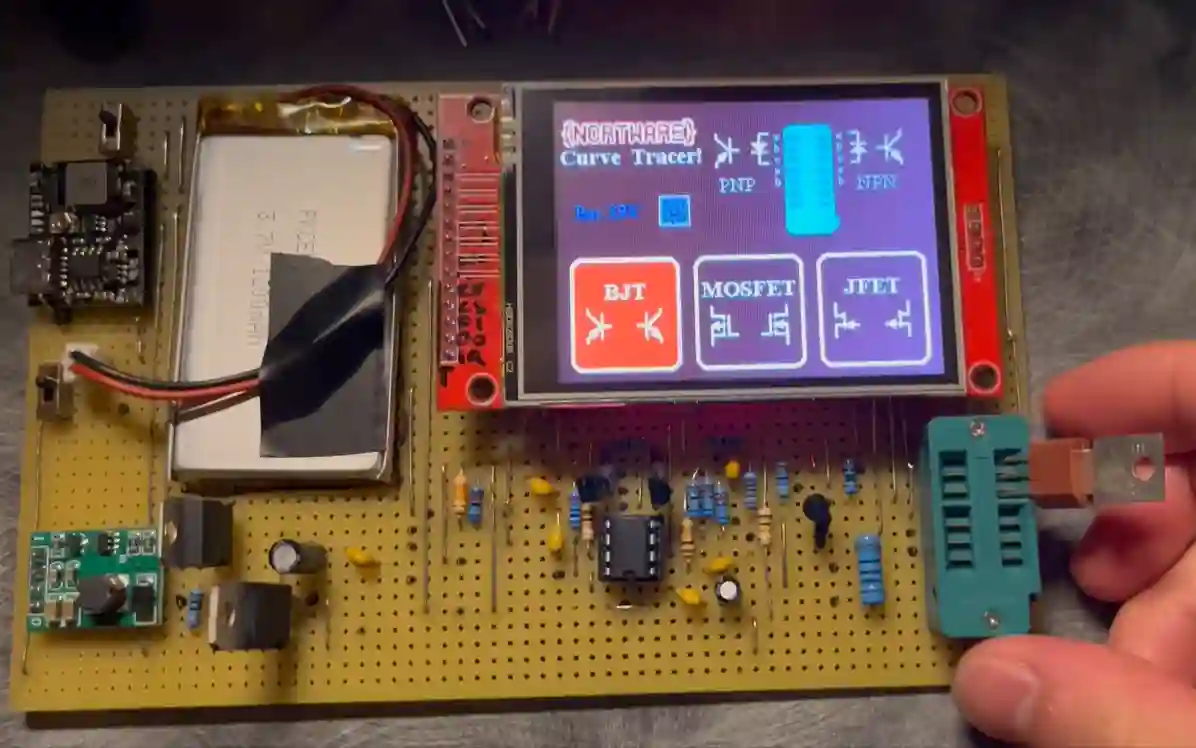

Handheld curve tracer with touchscreen display for transistor measurements, mounted on a Perfboard with other circuit components

A self-contained handheld transistor tester: plug in any transistor and the device uses dual DACs to sweep voltage across its terminals while applying a DC bias. The resulting current is plotted live on a small touchscreen, powered by an Arduino Pro Mini.

Built over a couple of months, with several specialty components (like the DACs and socket) directly funded by the Wireless Club budget.

How NU Wireless helped
  • Funding for critical parts (DACs, transistor socket)
  • Access to stocked components, soldering tools, and workspace
  • Lab environment for testing and refining the design

Solid State Tesla Coil

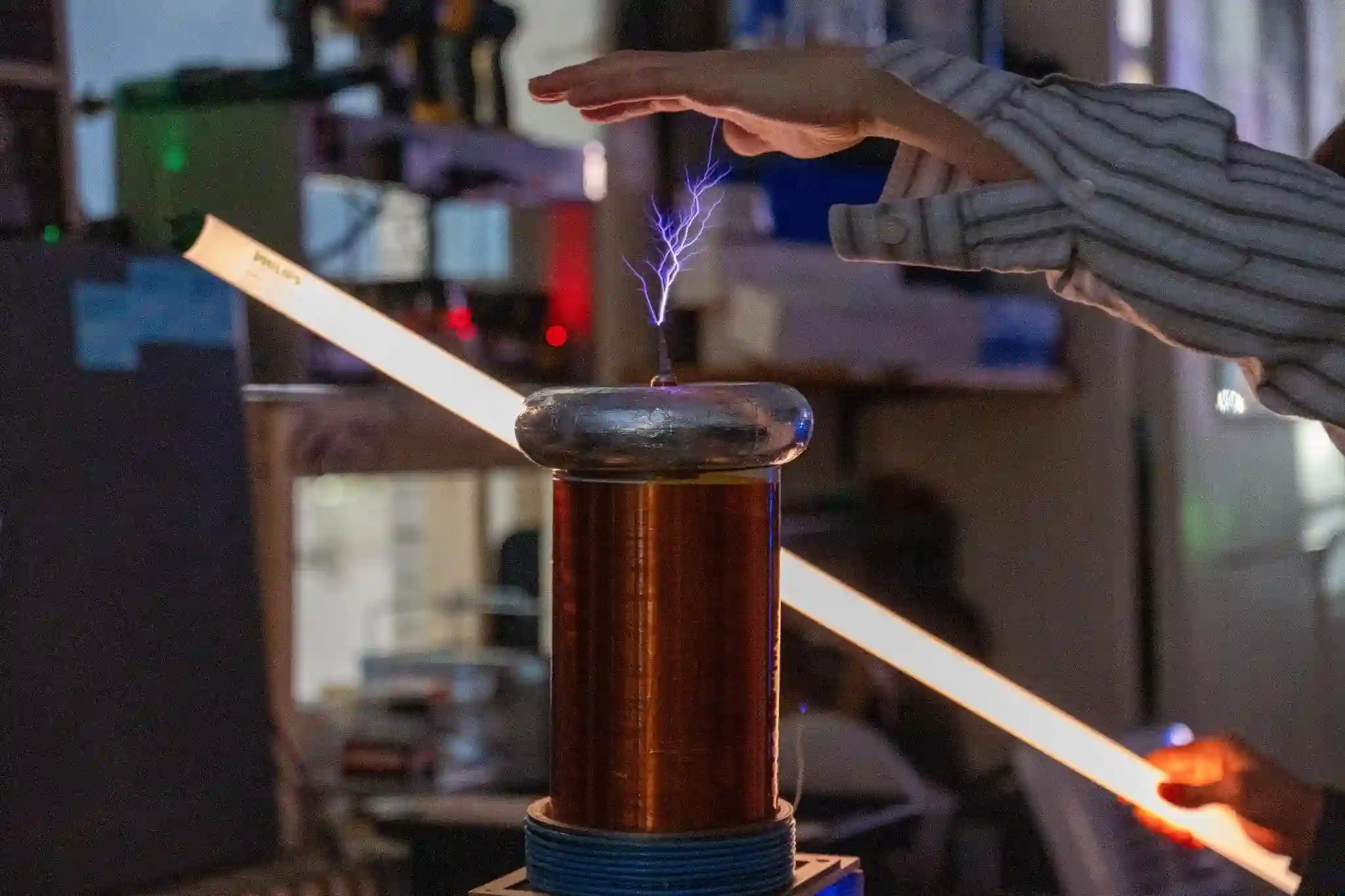

Tesla coil producing long, bright arcs

A high-frequency driver circuit pushes wall power through power transistors at ~300 kHz, producing ~100 kV and 1.5-ft arcs Built over a semester of winding coils, wiring, and assembly almost entirely in the Wireless club shack.

The arcs are low-current, so they can be touched without a severe shock (though it’s not advised!).

How NU Wireless helped
  • Wire, wood panels, tools, soldering and wiring setup, and stocked components
  • Advice from fellow members and a large knowledge base in the lab
  • Access to test equipment for circuit debugging and measurements

40-meter Woodpecker (CW transceiver)

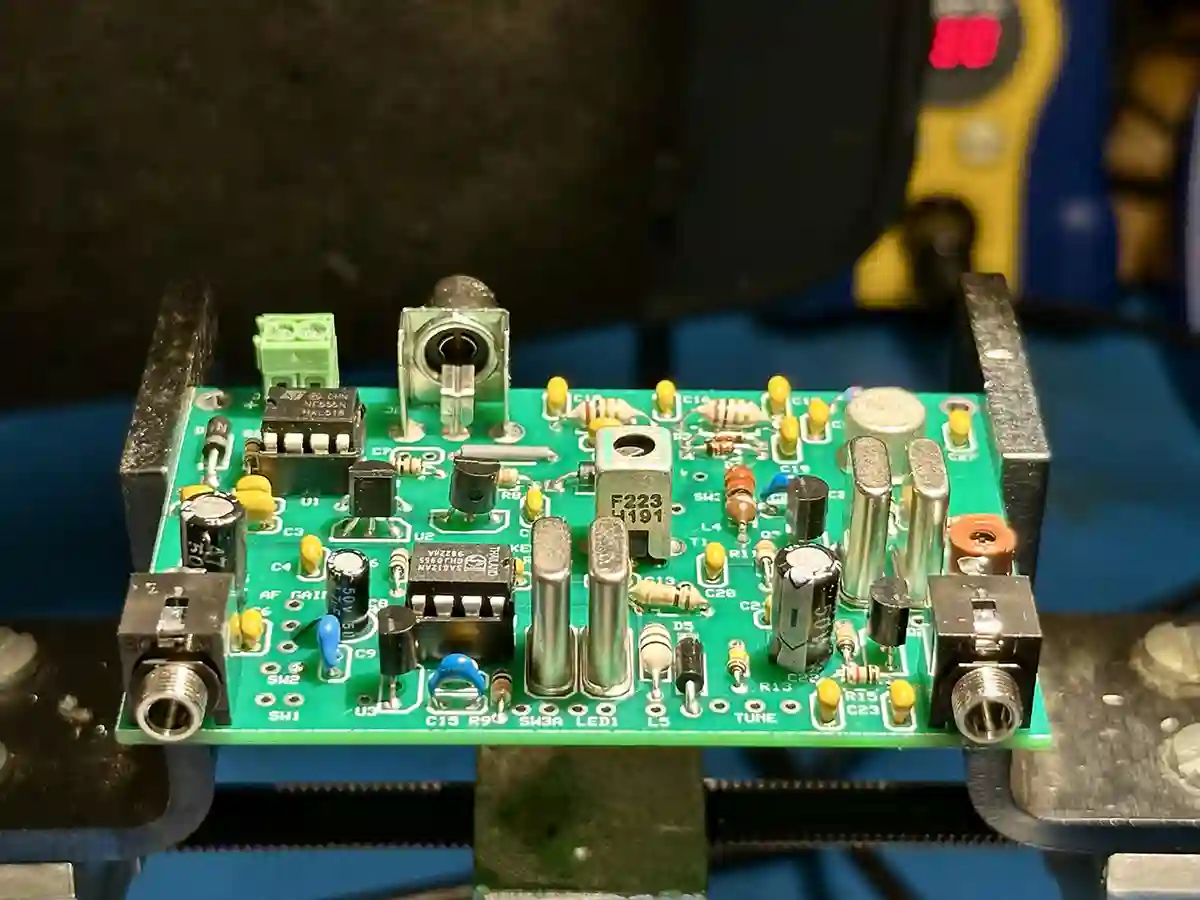

Partially built 40-meter Woodpecker CW transceiver kit. The green circuit board is mounted in a PCB vise, with most components soldered on, including capacitors, resistors, and ICs.

The 40m Woodpecker is a low-power CW transceiver kit for the 40-meter band. It uses a direct-conversion receiver with a tunable bandpass filter, audio shaping, and muting, paired with a simple two-stage transmitter with sidetone and QSK. Output is about half a watt. This build is still in progress and is being developed to support curriculum design for Professor Farhat’s Wireless Communication Circuits course (EECE 4574).

How NU Wireless helped
  • Comfortable lab space with 24/7 access, especially useful for late-night soldering.
  • Soldering stations and tools.
  • Test equipment for circuit debugging and measurements.
  • Extra components and replacements (e.g. jumpers, capacitors) that not only filled in for a couple of missing parts but also let me go beyond the standard kit build, making the wiring and layout much cleaner.

AIR

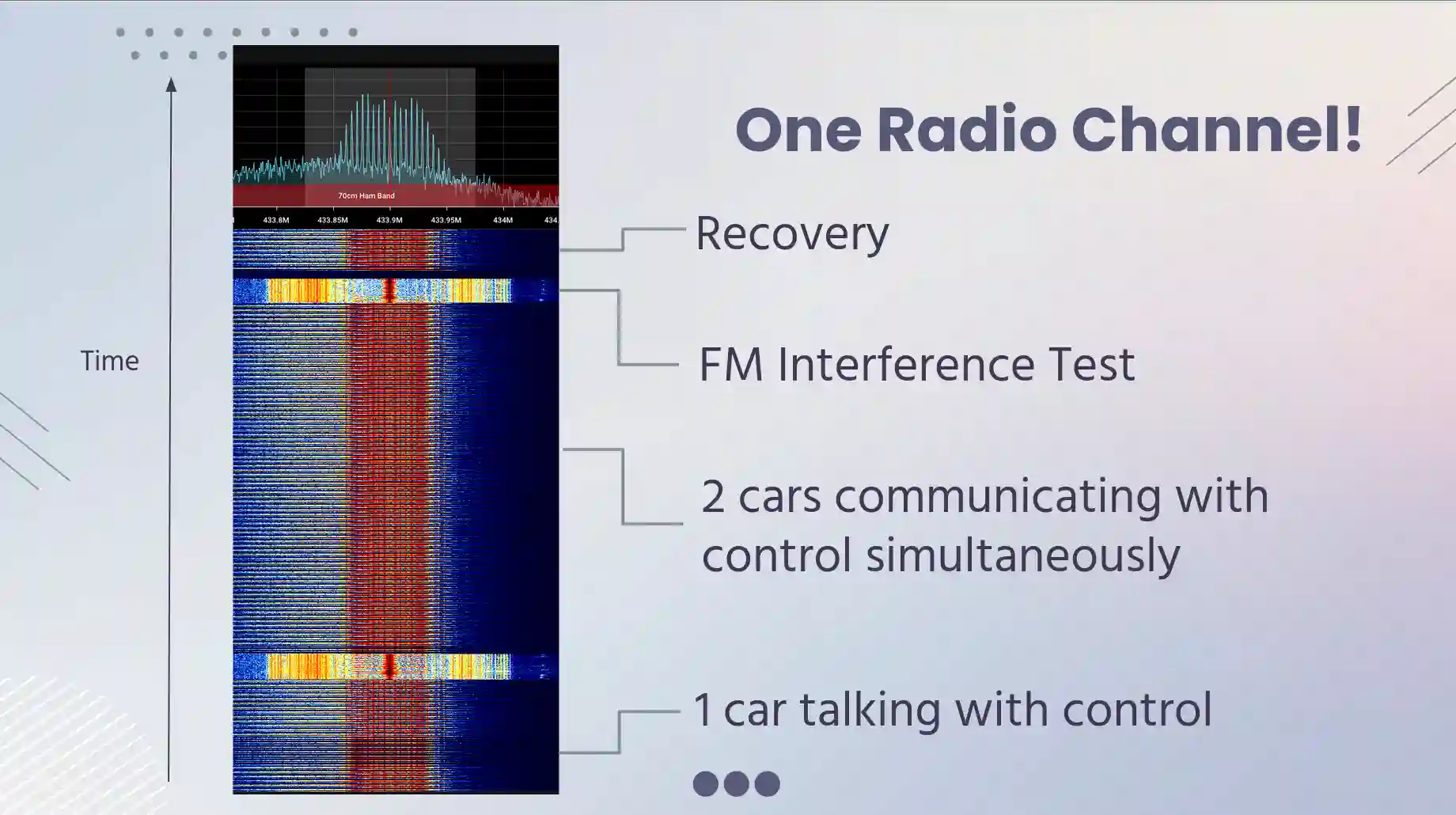

Waterfall plot showing multiple clients sharing a channel

Part of a Cornerstone project, AIR demonstrates multiple "clients" and a "controller" communicating over a single 433 MHz channel. Off-the-shelf radio modules are paired with a custom protocol written by Vlad based on time-division multiplexing, assigning timeslots to eliminate interference between clients.

How NU Wireless helped
  • Soldering stations and test equipment (oscilloscope, function generators)
  • Misc. equipment (coax, cables, speakers, etc.)
  • Consumables (protoboards, components, wires, ferrite materials)
  • Referenced electronics books from the shack library
  • Peer discussions and troubleshooting in the lab
  • Borrowed radio modules specifically for AIR

AM Receiver (WIP)

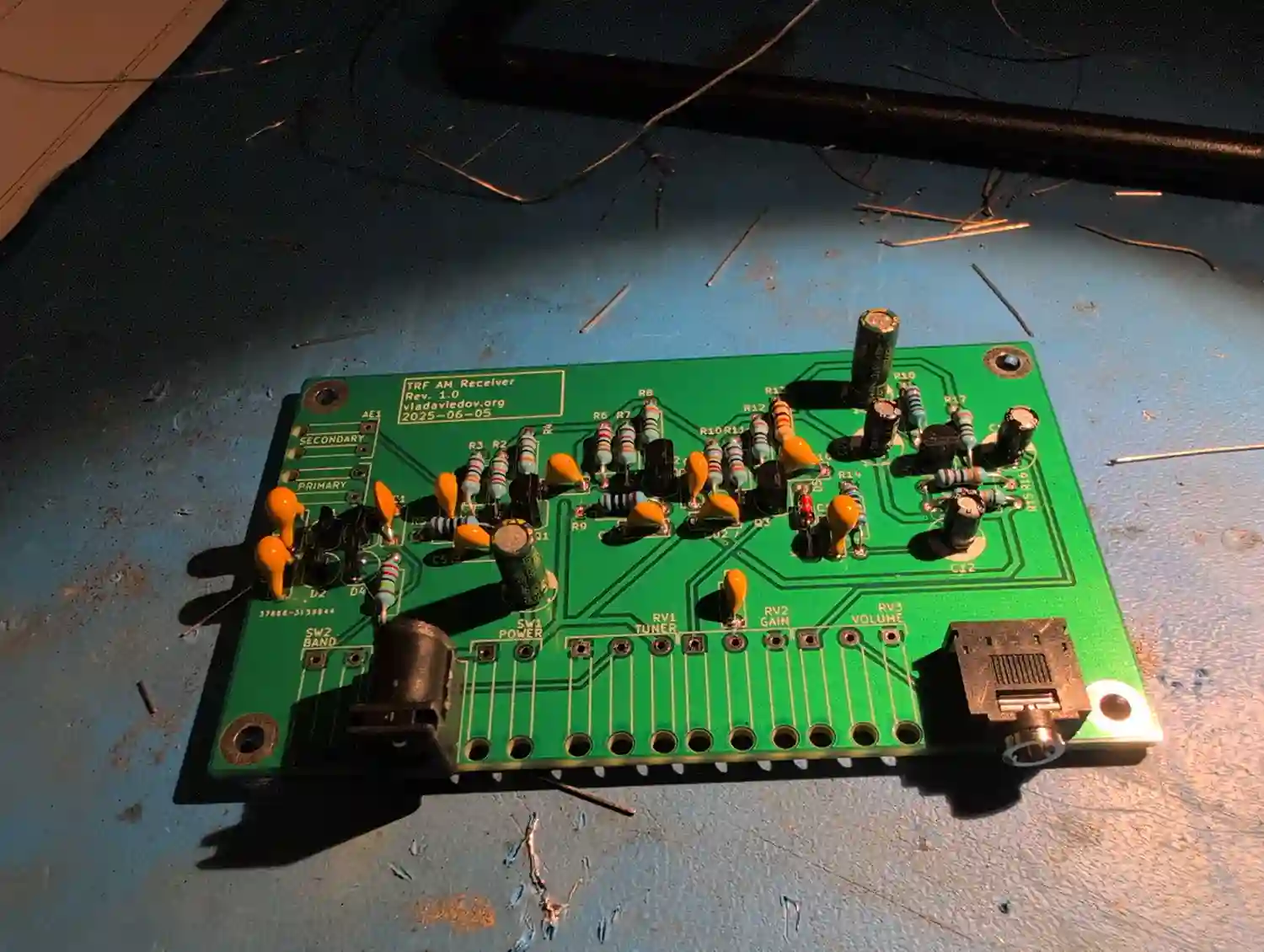

AM receiver circuit on a custom Printed Circuit Board (PCB)

A simple diode detector AM receiver that demodulates radio into audio using a ferrite-rod antenna. It is a simple design that does not allow tuning, so the strongest local station dominates. PCB and tuning improvements are still in progress.

How NU Wireless helped
  • Soldering stations and test equipment (oscilloscope, function generators)
  • Misc. equipment (coax, cables, speakers, etc.)
  • Consumables (protoboards, components, wires, ferrite materials)
  • Referenced electronics books from the shack library
  • Peer discussions and troubleshooting in the lab

CW Transmitter

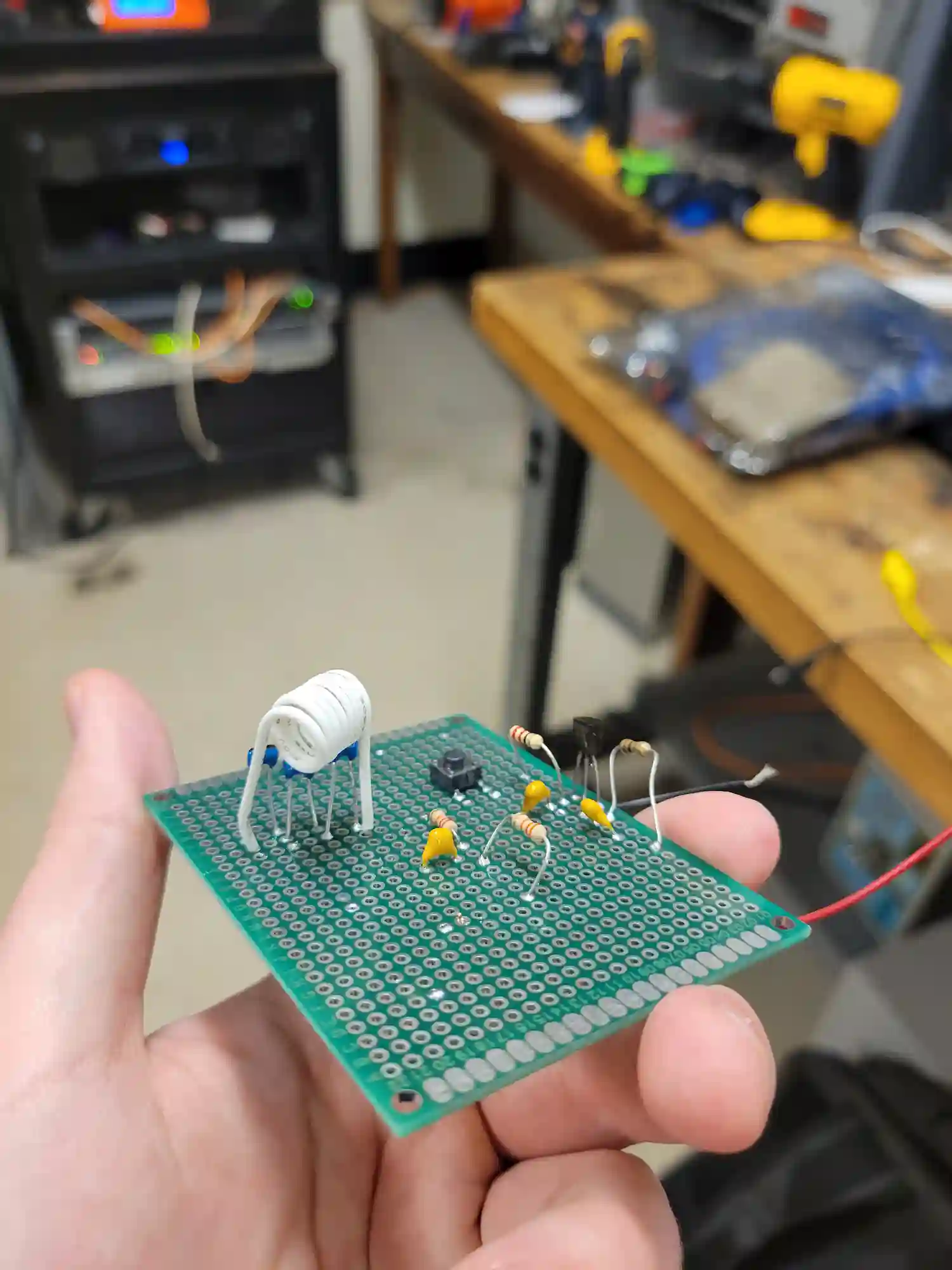

Continuous wave (CW) transmitter prototype on a Perfboard

Vlad's first project with radio! A Colpitts oscillator driving a random wire antenna with a carrier wave. The transmitter operates only while the button is pressed, allowing Morse code transmission. Despite limited frequency stability, a clear signal was received a few feet away using an SDR.

How NU Wireless helped
  • Soldering stations and test equipment (oscilloscope, function generators)
  • Misc. equipment (coax, cables, speakers, etc.)
  • Consumables (protoboards, components, wires, ferrite materials)
  • Referenced electronics books from the shack library
  • Peer discussions and troubleshooting in the lab
